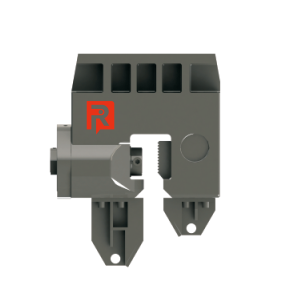

液壓夾具有多項選擇，可匹配夾持各類樁形。結構堅固，夾緊力大。頻率可調，可以方便的選擇低頻和高頻型號。使用橡膠減振可使振激力最大限度的用于打拔樁作業。尤其在拔樁作業時，可以提供更有效的上拔力，并且不需要任何特殊處理就可以水上和水下作業。
、


?板樁夾具參數

夾具型號	Fixture model	ZR-100YB	ZR-160YB	ZR-200YB	ZR-320YB
加持力/KN	Clamping force	1000	1600	2000	3200
操作壓力/Mpa	Operating pressure	32	32	32	32

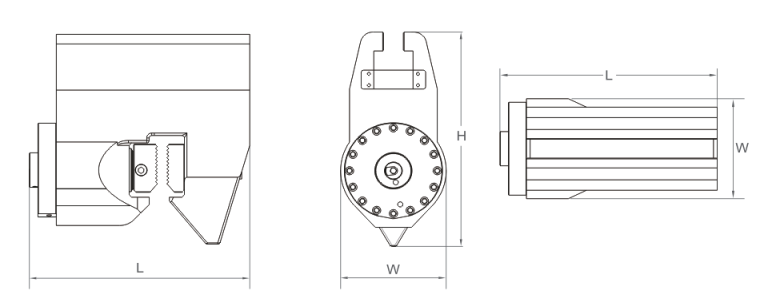

尺寸(不含夾具)/mm	Size L*W*H	686*310*705	1088*380*867	1143*360*1046	1363*460*1097
重量/Kg	Weight	490	1100	1300	2500
適配動力站型號	Adaptive power station model	ZR-70Y/CAT ZR-100Y/CAT	ZR-100Y/CAT ZR-130Y/CAT ZR-180Y/CAT	ZR-180Y/CAT ZR-230Y/CAT	ZR-300Y/CAT

?管樁夾具參數

夾具型號	Fixture model	ZR-100YG	ZR-160YG	ZR-200YG	ZR-320YG
加持力/KN	Clamping force	1000	1600	2000	3200
操作壓力/Mpa	Operating pressure	32	32	32	32
尺寸(不含夾具)/mm	Size L*W*H	686*310*705	1138*340*894	1143*360*1046	1363*460*1097
重量/Kg	Weight	570	870	1300	1900
適配動力站型號	Adaptive power station model	ZR-70Y/CAT ZR-100Y/CAT	ZR-100Y/CAT ZR-130Y/CAT ZR-180Y/CAT	ZR-230Y/CAT ZR-300Y/CAT	ZR-300Y/CAT ZR-400Y/CAT
